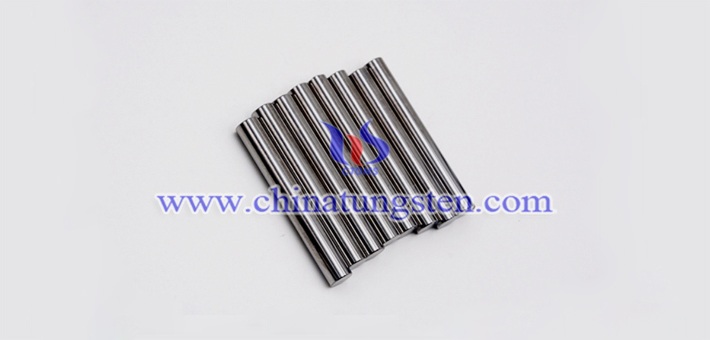

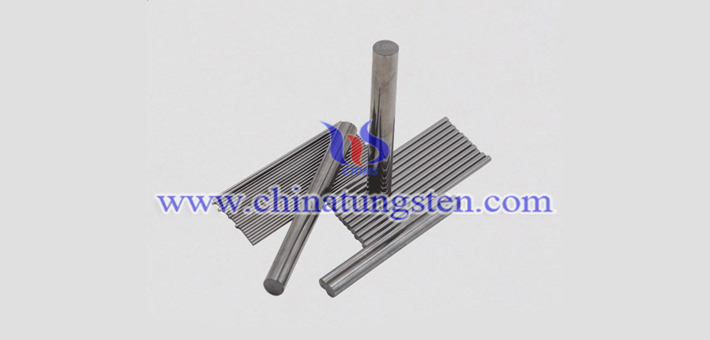

95W-3.5Ni-1.5Fe tungsten alloy cylinder has simple production process, which is easy to process. It can be used as military defense parts, extrusion mold, some heavy weight parts, such as yachts, vehicles, aircraft, helicopters, ships, water tanks, and so on.
The properties of 95W-3.5Ni-1.5Fe tungsten alloy cylinder are:
Alloy Type（%）：95W、3.5Ni、1.5Fe
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 C: NIL
ASTM B777-87: Class 3
Density: 18 g/cc and 0.65 lbs/ in3
Hardness Rockwell: 27 C
Ultimate Tensile Strength Min: 120,000 ksi
Yield Strength Min (0.2% offset): 90,000 ksi
Elongation: 7 % in 1"
Proportional Elastic Limit: 44,000PSI
Modules of Elasticity: 50 x 106 PSI
Coefficient of Thermal Expansion: 4.6 x 10-6/°C (20~400°C)
Thermal Conductivity: 0.26 CGS Units
Electrical Conductivity: 13 % IACS
Magnetic Properties: Slightly Magnetic
