Barium tungsten electrodes excel in electron emission efficiency, brightness, and resistance to poisoning, making them suitable for HID lamps, strobe lights, and other similar applications. Lanthanum tungsten electrodes, on the other hand, offer advantages in welding stability, arc column control, and safety, and are widely used in precision welding in the aerospace industry. Below is a detailed comparison:
1. Composition and Manufacturing Process

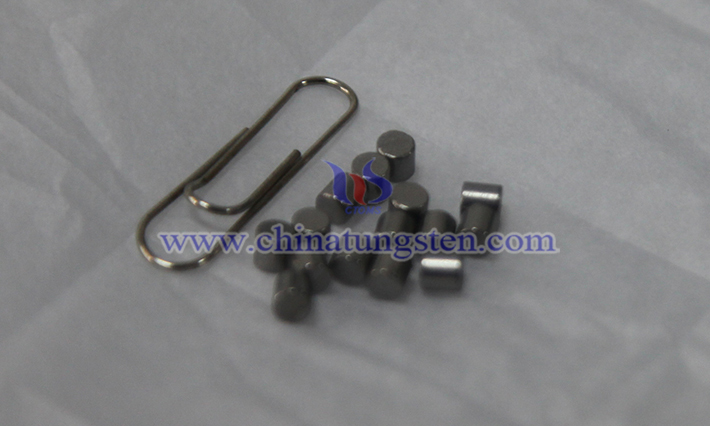

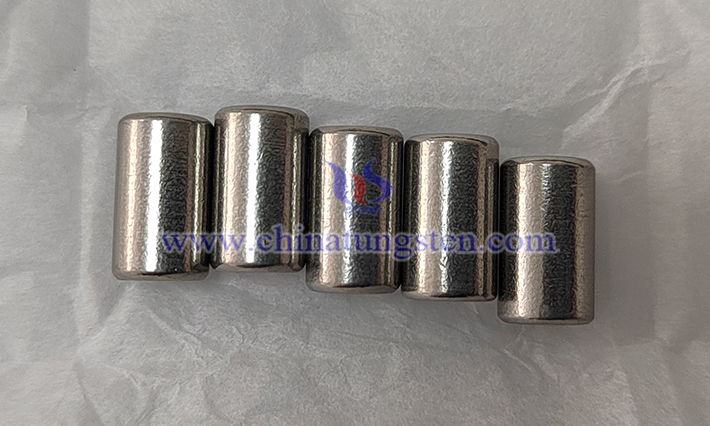

Barium tungsten electrodes are composed of tungsten filaments and a barium-tungsten mixture, with barium added via an impregnation method. Their manufacture involves preparing a tungsten sponge first, followed by coating with an emitting material such as barium aluminate, and then high-temperature sintering, resulting in a relatively complex process.
Lanthanum tungsten electrodes are made by doping a tungsten matrix with 0.8% to 2.2% lanthanum oxide (La?O?). During manufacturing, lanthanum acetate is mixed with tungsten powder and reduced in stages under a hydrogen atmosphere. This process is relatively simplified, with the doping amount being controllable, and the electrode type is typically distinguished by color codes.
2. Core Performance Parameters
Barium tungsten electrodes have an electron work function as low as 1.6 eV, significantly lower than the 4.5 eV of pure tungsten, resulting in high emission efficiency, a current density of up to 10 A/cm2, low starting voltage, and high brightness. However, they are relatively brittle and must be protected from atmospheric exposure.
Lanthanum tungsten electrodes have an electron work function of 2.6 to 3.0 eV, which is lower than that of pure tungsten but higher than that of barium tungsten. They exhibit excellent arc column stability, strong resistance to thermal shock, longer life than thorium tungsten electrodes, and excellent erosion resistance.
3. Application Areas
Due to their high electron emission efficiency and brightness, barium tungsten electrodes are widely used in HID lamps, strobe lights, laser pumping, electron vacuum devices, medical positioning therapy, military weapons, and other fields.
Lanthanum tungsten electrodes, characterized by their non-radiative nature and excellent arc column stability, are mainly used in precision machining fields such as TIG welding and plasma cutting, as well as in aerospace, nuclear energy, and other applications requiring high stability and safety.
4. Summary of Advantages and Disadvantages
The advantages of barium tungsten electrodes lie in their extremely high electron emission efficiency, high brightness, low starting voltage, non-radioactivity, and strong resistance to poisoning. However, they have a complex manufacturing process, high cost, and are brittle.
The advantages of lanthanum tungsten electrodes include their non-radioactivity, excellent arc column stability, long life, ability to replace thorium tungsten electrodes, and close electrical conductivity but with greater safety. However, they have a higher electron work function, slightly lower emission efficiency than barium tungsten, and are sensitive to La?O? content, requiring precise control of the doping amount.
5. Selection Recommendations
If high brightness, rapid starting, or resistance to poisoning is required, such as in HID lamps, strobe lights, medical equipment, and other applications, barium tungsten electrodes are recommended.
If stable arc, long life, or non-radiation requirements are needed, such as in aerospace welding, nuclear energy equipment, and other applications, lanthanum tungsten electrodes are recommended.
