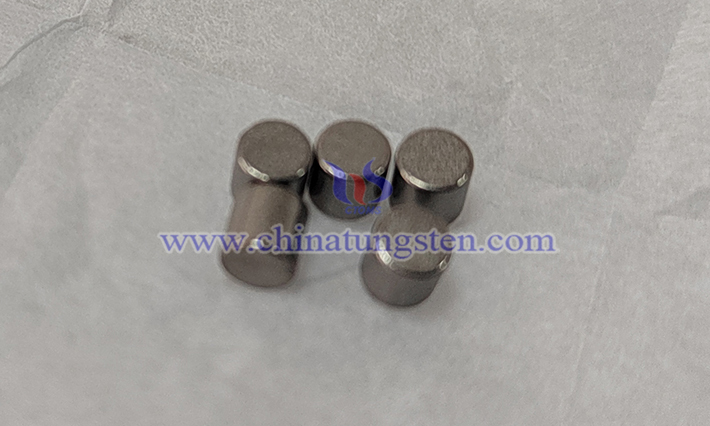

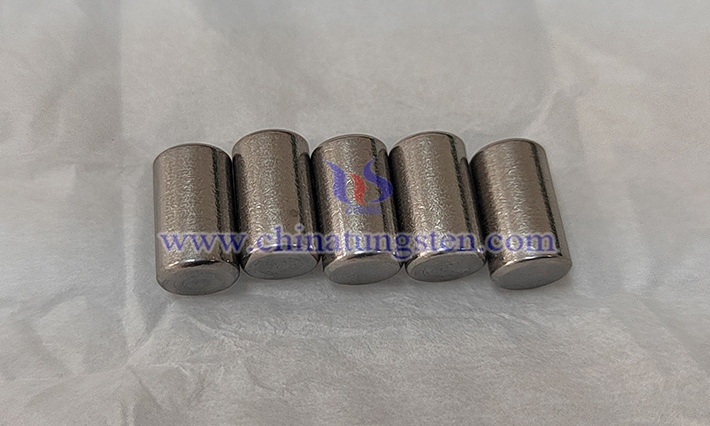

Barium tungsten electrodes significantly enhance the performance of high-intensity discharge (HID) lamps by combining the physical stability of tungsten with the superior electron emission properties of barium. They are a critical component in high-efficiency, long-life lighting technologies.
1. Composition and Characteristics of Barium Tungsten Electrodes
Tungsten Matrix: Tungsten is selected as the ideal electrode base material due to its high melting point (approximately 3422°C), excellent mechanical strength, and good electrical conductivity. The tungsten matrix can withstand the high temperatures and arc impacts during HID lamp operation, ensuring stability in extreme environments.
Barium Compounds: Typically impregnated with barium oxide (BaO) or other barium-based compounds, barium has a low work function (approximately 2.1 eV). This property effectively reduces the energy required for electron emission, promoting thermionic emission and optimizing electrode performance.
2. Role and Advantages of Barium Tungsten Electrodes in High-Intensity Discharge Lamps
Reduced Ignition Voltage: The low work function of barium enables the electrode to emit electrons more efficiently, significantly lowering the ignition voltage of high-intensity discharge lamps. This improves cold-start performance, particularly in low-temperature environments.
Enhanced Luminous Efficiency: Stable electron emission ensures uniform and sustained arcs, thereby improving the lamp’s luminous efficiency and light output stability, providing reliable high-quality illumination.
Extended Service Life: By optimizing the electron emission mechanism, barium tungsten electrodes effectively reduce material sputtering and degradation, extending the operational life of the lamp and lowering maintenance costs.
High-Temperature and Corrosion Resistance: The high-temperature resistance of the tungsten matrix, combined with the chemical stability of barium compounds, enables the electrode to operate reliably in high-temperature and chemically reactive gas environments (e.g., metal halides).
3. Applications of Barium Tungsten Electrodes in High-Intensity Discharge Lamps
Metal Halide Lamps: Known for their high color rendering and brightness, these are widely used in commercial lighting and sports stadiums.
High-Pressure Sodium Lamps: Valued for their energy efficiency, they are commonly employed in streetlights and industrial lighting.
Xenon Lamps: Renowned for rapid startup and high brightness, they are frequently used in automotive headlights and high-end projection equipment.
