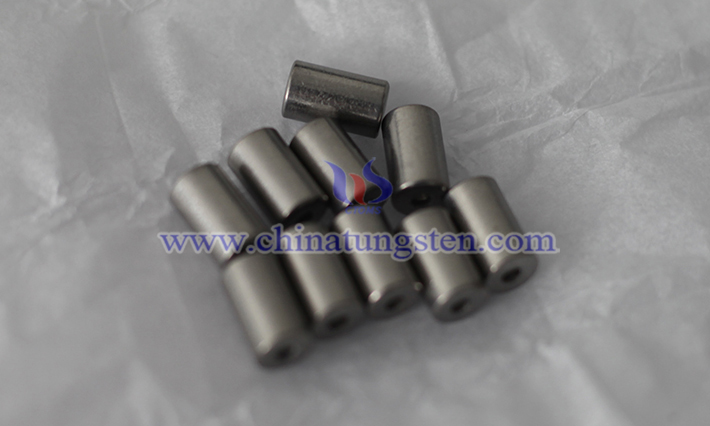

Barium tungsten electrode is a cathode material widely used in electron tubes and gas discharge tubes. It occupies an important position in related fields due to its unique properties.
1. Low Work Function
The work function of barium tungsten electrode is low, usually between 1.6 and 2.0 electron volts. This feature makes it easier for electrons to escape from the cathode surface, greatly improving the efficiency of electron emission. This advantage is particularly prominent in devices that require efficient electron emission, such as high-power electron tubes and gas discharge tubes, which can ensure the efficiency and stability of equipment operation.
2. High Emission Current Density
Due to the low work function, barium tungsten electrodes can achieve a high emission current density of up to 10-20 amperes per square centimeter. This feature makes it very suitable for applications that require large current output, such as radar transmitting tubes and microwave tubes, and can easily meet the needs of high-power equipment, providing strong support for modern electronic technology.
3. Good Thermal Stability
Barium tungsten electrodes can still maintain stable performance in high temperature environments (usually operating temperatures are 1500-1800 Kelvin) and are not prone to thermal decomposition or evaporation. This feature significantly extends the service life of the cathode, allowing it to operate reliably under harsh working conditions and reducing maintenance and replacement costs.
4. Pollution Resistance
Barium tungsten electrodes have strong resistance to pollutants such as oxygen and water vapor. In environments where impurities may exist, such as gas discharge tubes, this advantage ensures the stability of its performance, thereby improving the overall reliability and service life of the equipment.
5. Easy to Prepare
The preparation process of barium tungsten electrodes is relatively simple, usually completed by powder metallurgy or impregnation, and the production cost is low. This feature makes it suitable for large-scale industrial production, laying an economic foundation for its widespread application, allowing more equipment to benefit from this high-performance material.
6. High Mechanical Strength
Barium tungsten electrodes have high mechanical strength, can withstand thermal stress and mechanical shock, and are not easy to deform or damage. This feature is particularly important under extreme conditions such as high-power pulse electron tubes, ensuring the durability of the cathode in complex environments.
7. Good Electron Emission Uniformity
By optimizing the preparation process, barium tungsten electrodes can achieve uniform electron emission distribution and avoid problems such as local overheating or uneven emission. This advantage improves the overall performance and life of the device, and provides a guarantee for the efficient operation of the equipment.
8. Strong Adaptability
Barium tungsten electrodes can adapt to a variety of working environments, including vacuum, inert gas or low-pressure gas environments. Its wide applicability makes it an ideal choice for electron tubes and gas discharge tubes, meeting the needs of different application scenarios.
